Haibike AllMtn 7 2024

Haibike AllMtn 7

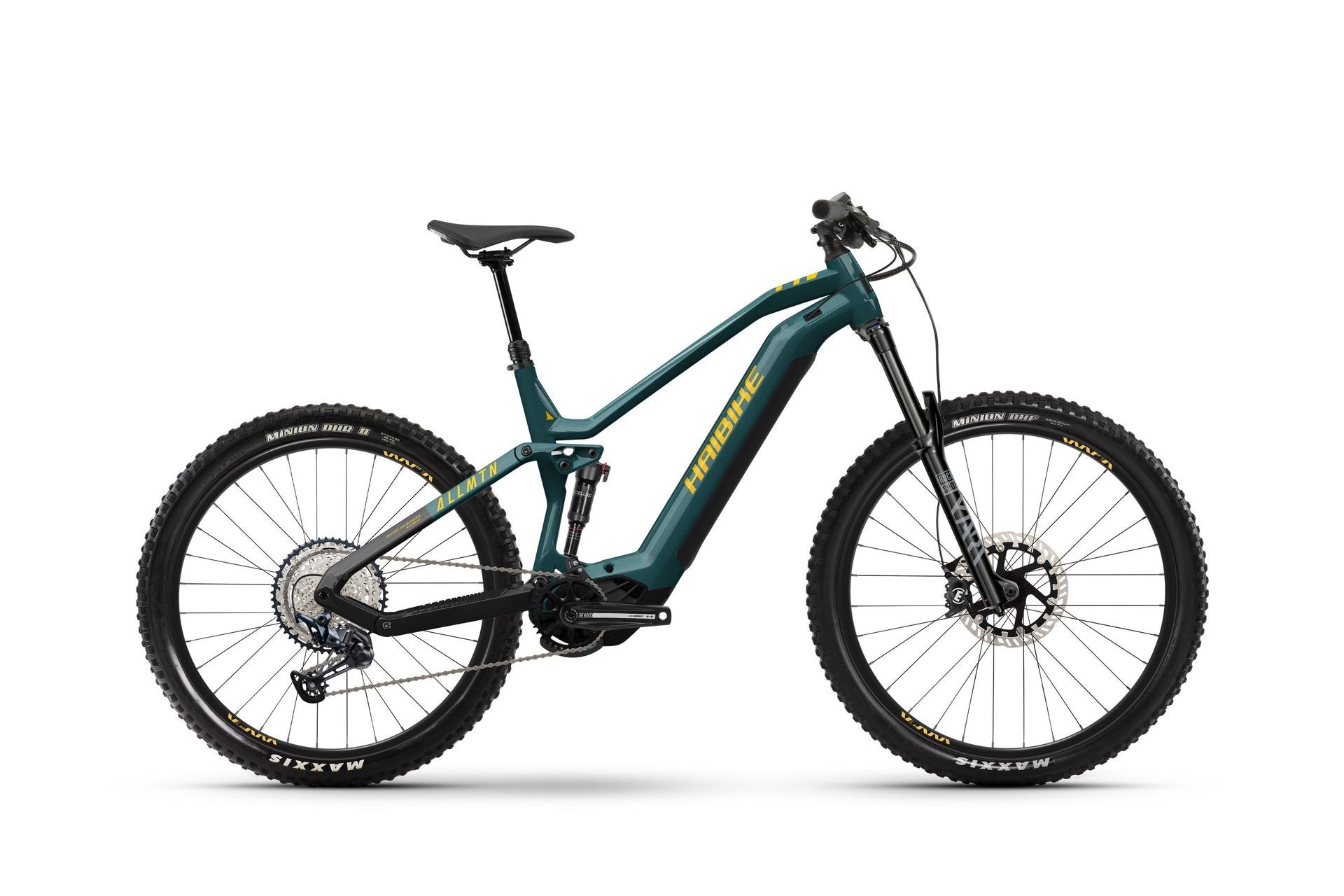

Our Haibike ALLMTN 7 offers uncompromising ePerformance on the trail: The compact and powerful Yamaha PW-X3 motor guarantees optimal support, its 720 Wh battery providing enough range for even longer rides. The wheel size mix of 29"/27.5" ensures optimum traction uphill and good rollover performance downhill. With the 160 mm Rockshox Yari Performance air suspension fork, a SRAM GX Eagle rear derailleur and Magura MT7 4-piston disc brakes you are well equipped for any adventure, mastering jumps or challenging lines safely and confidently.
£ 4299

Yamaha PW-X3  - The drive unit for pure trail ePerformance without compromise

Through a complete drive unit redesign, PW-X3 delivers 85Nm of motor torque throughout a wide cadence range. The PW-X3 design is committed to motor performance, keeping the high torque output figures despite the drastic size and weight reduction.

Right from the beginning, every PW-X series drive unit has featured the 128mm ISIS interface bottom bracket axle that gives the best Q-factor in any e-bike system. Yamaha Motor’s new PW-X3 continues with this idealized layout, making it especially attractive to expert riders.
Exclusive mechanical components and control program realize an unparalleled level of maneuverability. The reduced backlash of the ratchet mechanism and lightweight designs for major moving parts, such as the axle shaft and reduction gear, contributes to a quicker, more direct response to pedaling.
Fundamental design choices create the Yamaha distinctive feature of providing instant support with full torque immediately after pressure is applied to the pedal, not after certain crank turn.

The new PW-X3 is approximately 20% smaller and 10% lighter than the PW-X2 model. Its ultra-compact dimensions offer e-bike manufacturers greater freedom to develop nice-looking bikes aiming for ideal frame geometry and suspension kinematics, as well as increased ground clearance.


Yamaha PW-X3

Drive Unit Center Motor

Weight 2.75 kg

Rated Power 250 W

Max. Torque 85 Nm (EXPW)

Max support Speed 25 km/h

Support Mode 5 modes
                     -EXPW
                     -HIGH
                     -STD
                     -ECO
                     -+ECO

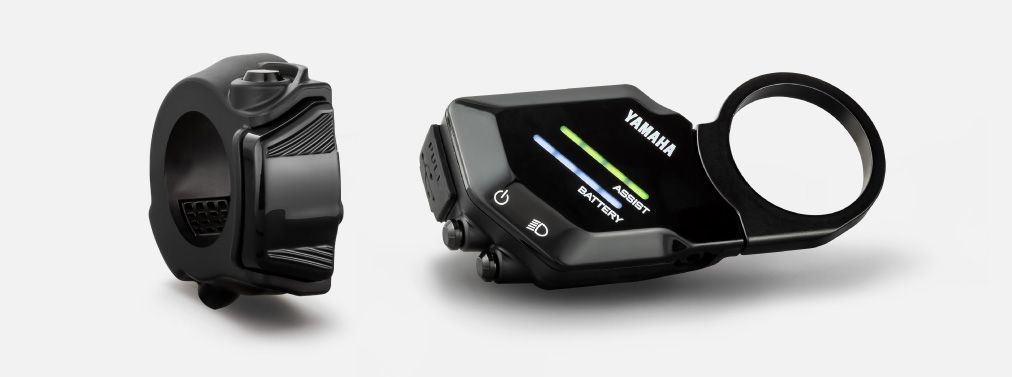

Yamaha Interface X

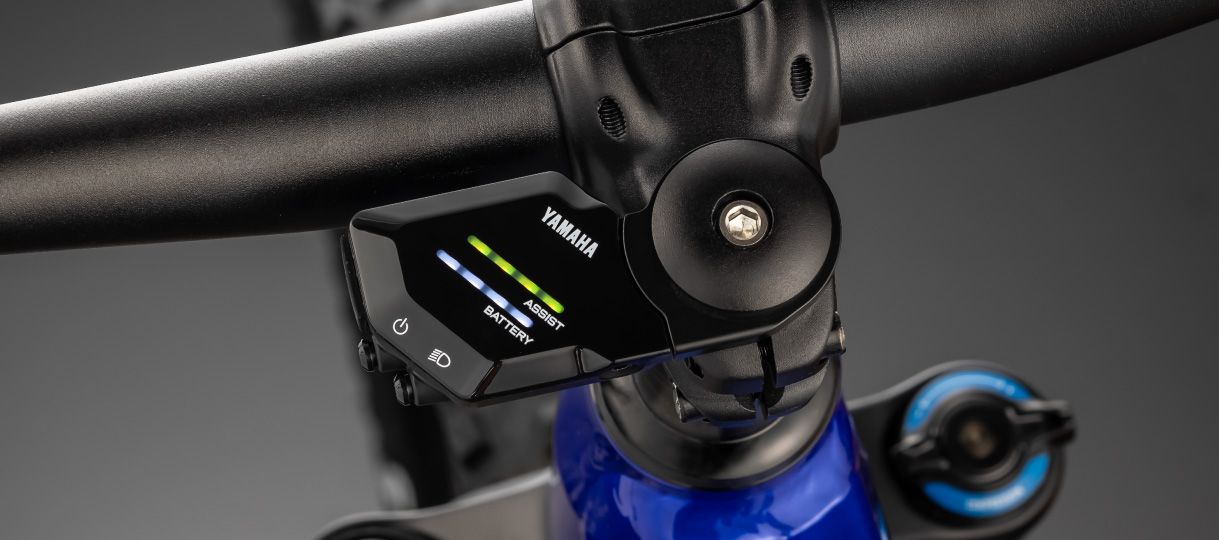

Interface X mounts to the bike’s stem, giving a cleaner look to the cockpit and handlebar area. Its remote switch features ergonomic mode selection buttons whose intuitive design enables the rider to concentrate on the track ahead. The color-coded assist mode indicator as well as a battery capacity indicator provide easy to read information.


Interface X Highlights
-Minimalist stem-mounted LED communication unit
-Mounting location allows for a clean cockpit and handlebar
-Ergonomic remote switch for excellent ‘blind’ operation
-LED indicators for battery capacity and color-coded assist mode indicator
-LED indicators for Automatic Support Mode and walk assist
-USB port for system diagnosis and power supply
-Bluetooth® Low Energy Technology and ANT+™ connectivity
-Compatible app available from 3rd party developers
-Compatible with cycle computers from brands like Sigma, Garmin and Echowell

When will your AllMtn 7 adventure start - Rediscover your passion for cycling
