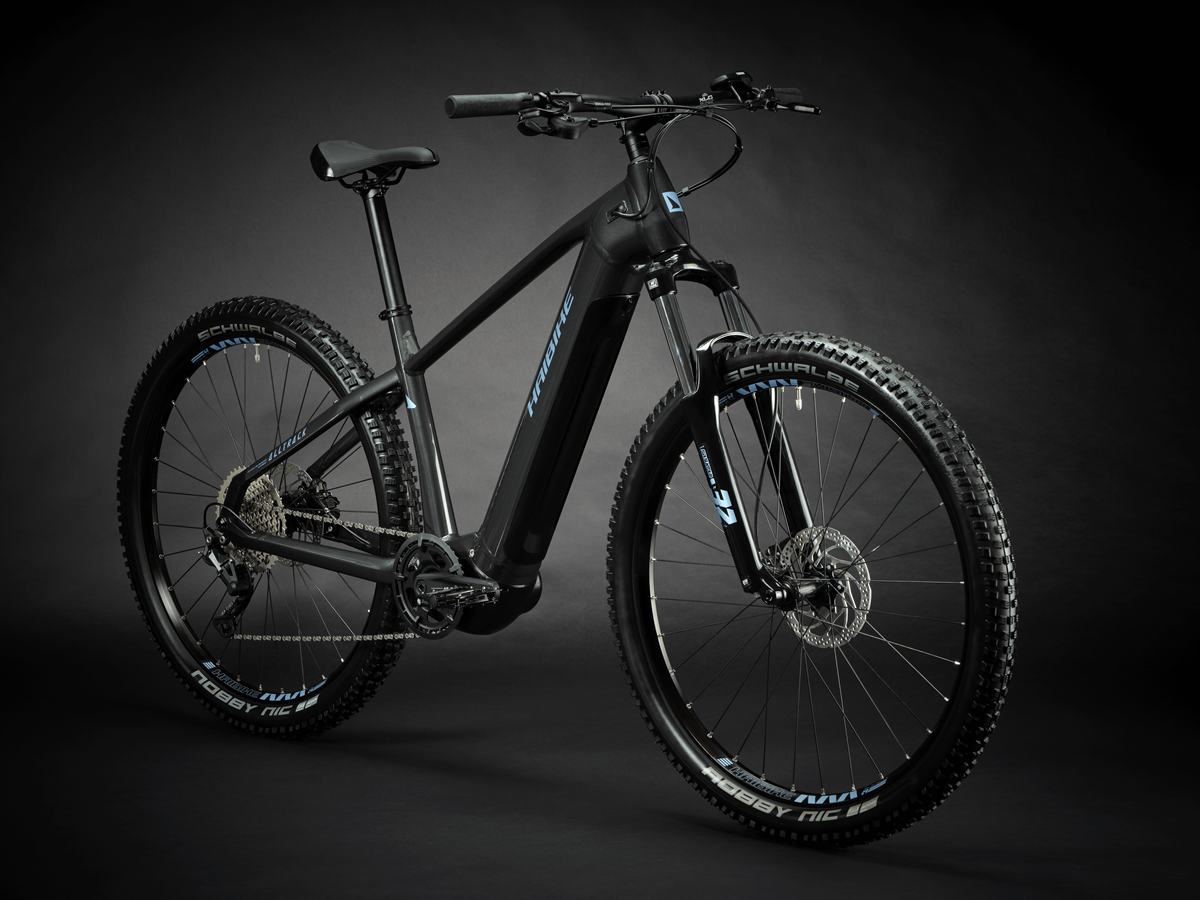

Haibike AllTrack 5

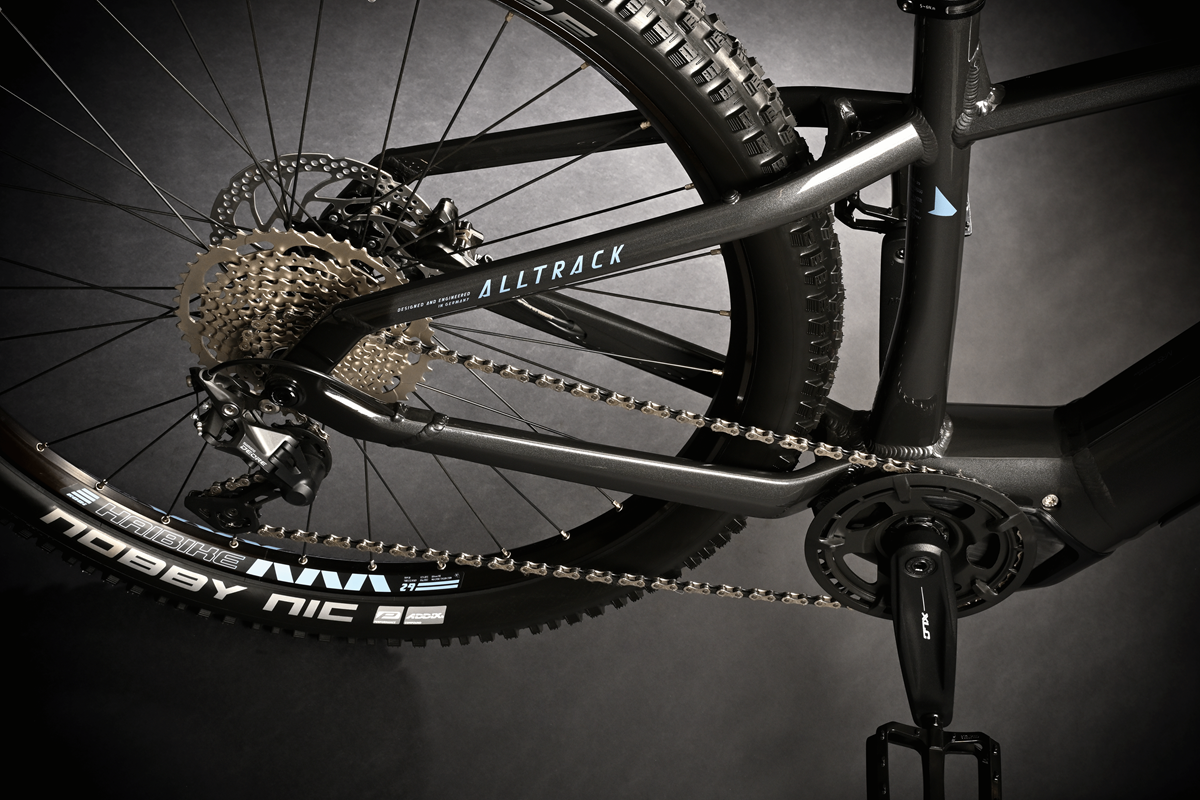

Asphalt or off-road? With the Haibike ALLTRACK 5 you don't have to choose! This hardtail eMTB is your ideal companion for on, and off-road, adventures. The SR Suntour suspension fork with 120 mm travel and the hydraulic disc brakes from Shimano ensure safety and comfort even on rough terrain. The new Yamaha PW-S2 motor with 75 Nm of torque and 720 Wh battery supports you on steep climbs and the reliable Shimano Deore 10-speed rear derailleur ensures smooth riding fun. The ALLTRACK 5 is available in frame sizes S and M with 27.5" wheels and sizes M to XL with 29" wheels.

Slide title

Write your caption here

Button

£ 2300

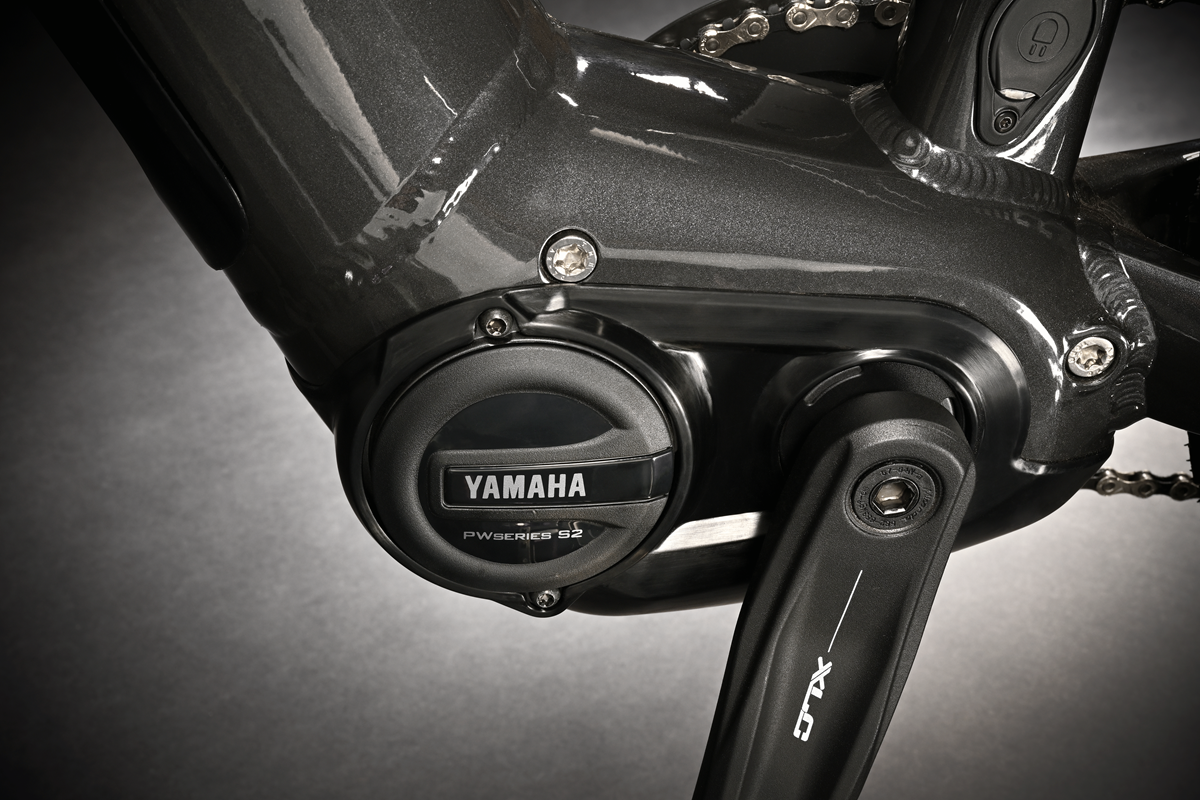

Yamaha PW-S2 Drive System

Developed with the philosophy that ‘less is more’ the PWseries S2 drive unit is significantly lighter and smaller while delivering more torque than its predecessor, the best-selling PWseries ST. With a long list of features, the new PWseries S2 elevates the riding experience to another level – making this multi-role drive unit ideally suited to everything from commuting and general daily usage through to countryside trekking, weekend touring and mountain trail riding.

The compact new PWseries S2 drive unit maximum torque of 75Nm is over 7% higher than the PWseries ST, and weight has been cut to just 2.85 Kg – 16% less than the previous design – making it one of the lightest in its class. This highly desirable combination of increased output with reduced mass and a 20% decrease in volume ensures that the new PWseries S2 achieves one of the highest torque-to-weight ratios in the multi-role segment – giving strong, instant and user-friendly performance.

The smaller dimensions of the new unit offer bike manufacturers even greater freedom to produce new generation frame designs with features such as increased ground clearance for improved performance on technical terrain.

The 20% more compact PWseries S2 layout also makes it possible for bike manufacturers to develop idealized frame designs with shorter chain-stays that can potentially increase overall rigidity to give enhanced maneuverability and increased rear wheel traction.

From an aesthetic point of view the reduced size of the PWseries S2 drive unit also offers Yamaha’s partner bike manufacturers the opportunity to achieve a clean and minimalist look when designing the next generation of Sport and Trail models.

The new PWseries S2 features a narrow bottom bracket axle length of 128mm – 22.8mm less than the PWseries ST – which make possible the application of narrow Q-factor, and therefore improved pedaling efficiency and feel can be expected. This feature, together with the Automatic Support Mode, ensures an extremely easy and enjoyable riding experience.

The new ISIS bottom bracket axle interface delivers increased rigidity, making this new mid-class drive unit ideally suited to the needs of e-MTB riders – and, being fully compatible with a front double chainring, the compact new drive unit opens up greater possibilities for bike manufacturers.

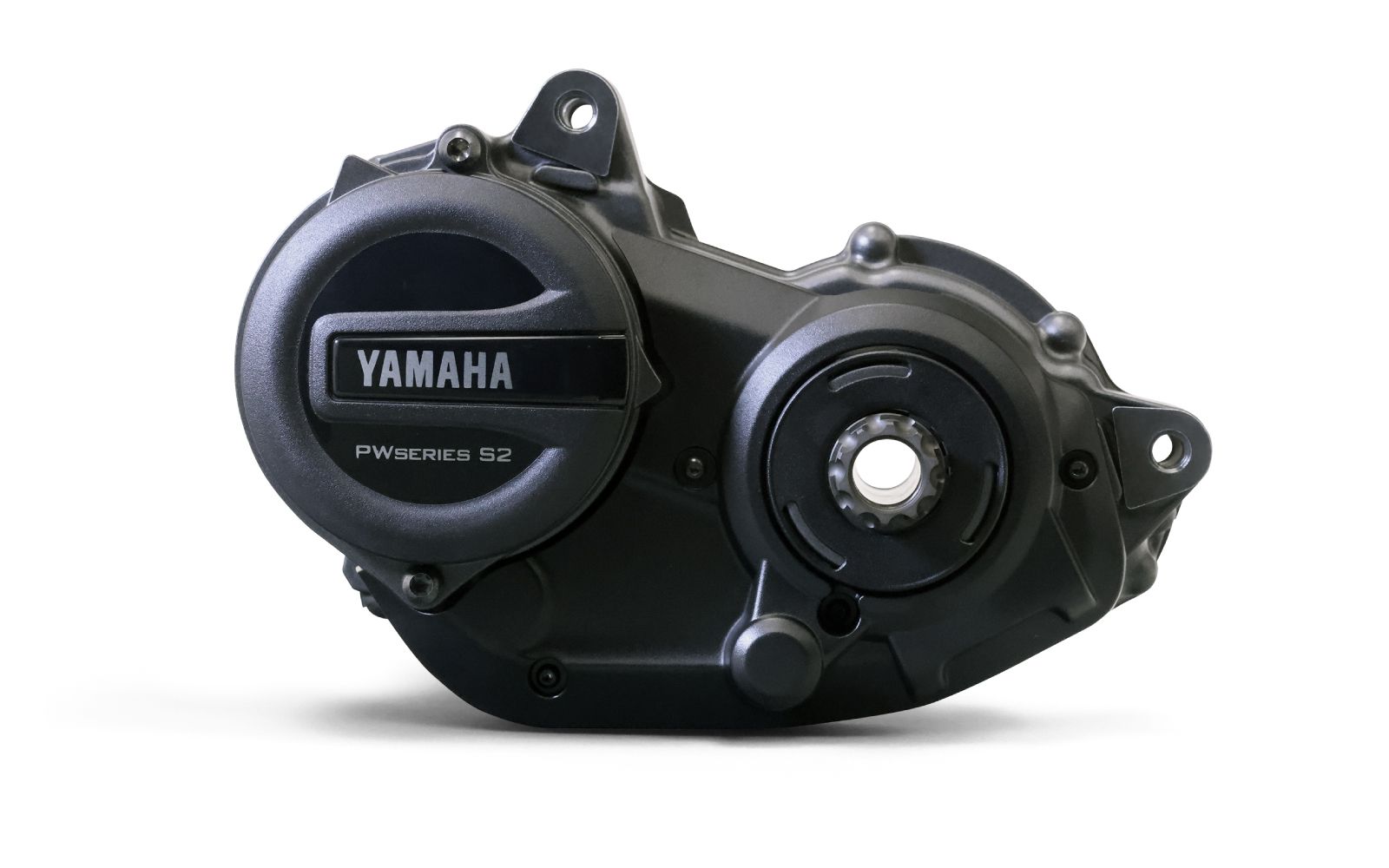

Yamaha PW-S2

Drive Unit Center Motor

Weight 2.85 kg

Rated Power 250 W

Max. Torque 75 Nm

Max support Speed 25 km/h

Support Mode 4 modes
-HIGH
-STD
-ECO
-+ECO

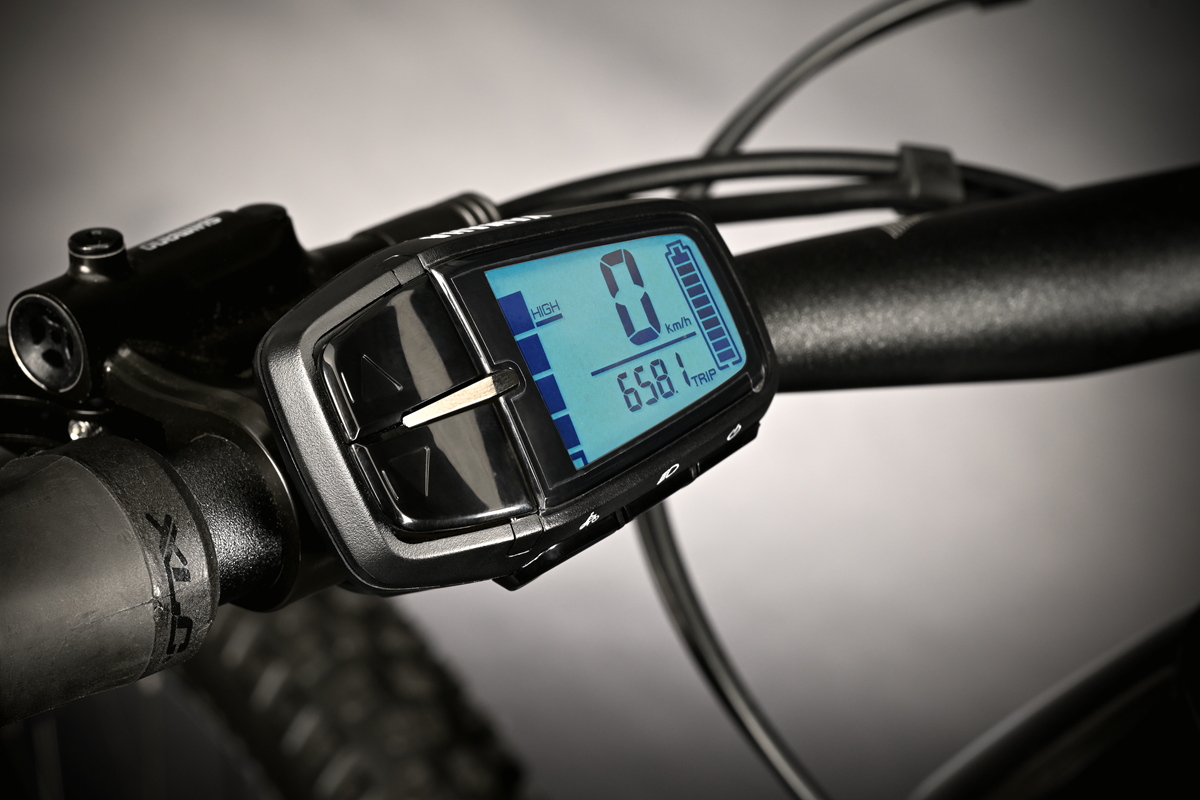

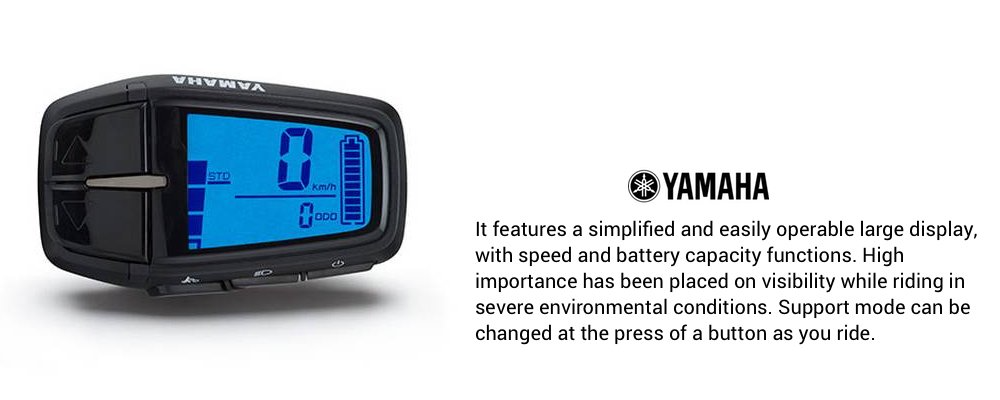

Yamaha Side Switch Display

The Yamaha Side Switch eBike Display is neat and sits over to the left side of the handlebars. Offering the rider vital stats on the fly whilst keeping the cockpit area clear and clutter free. The 1.7″ LCD display offers the quick reading of stats like Speed, Battery Capacity & Assist Mode.
